SECUTEST/SECULIFE ST – Getting Started
The following instruments are required for data exchange with IZYTRONIQ:
• SECUTEST ST BASE and SECUTEST ST BASE10 with SECUTEST DB+ database expansion (Z853R)*
• SECUTEST ST PRO and SECUTEST ST PRO BT comfort with SECUTEST DB+ database expansion (Z853R)*
• SECUTEST BASE and SECUTEST BASE10 with SECUTEST DB+ database expansion (Z853R)*
• SECUTEST PRO with SECUTEST DB+ database expansion (Z853R)*
• SECULIFE ST BASE and SECULIFE ST BASE 25 with SECUTEST DB COMFORT database expansion (Z853S)*
* Test data can be read from the instrument without the database expansion, but nothing can be transferred to the instrument. The database expansion is thus required for the range of functions described in this documentation.
The respective test instrument must be connected to the PC via the USB slave port. After the
SECUTEST.../
SECULIFE... has been switched on, the instrument is automatically detected by
IZYTRONIQ.

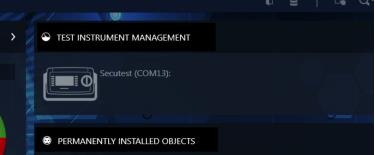

If the instrument hasn’t yet been entered to test instrument management, you’re asked whether it should be saved automatically. The test instrument is now ready to exchange data with IZYTRONIQ.
