IZYTRONIQ can manage measuring and test instruments which are used for tests performed on objects (devices, medical devices, machines and systems). Device characteristics such as device designation, manufacturer, type, serial number and calibration data can be set up, imported, displayed and edited.

If a test instrument is connected, checking is first conducted to determine whether or not it’s a GOSSEN METRAWATT measuring instrument. If so, its serial number and device type are read out. Checking is performed in order to determine whether or not the test instrument is already present in IZYTRONIQ, and if not it’s registered.

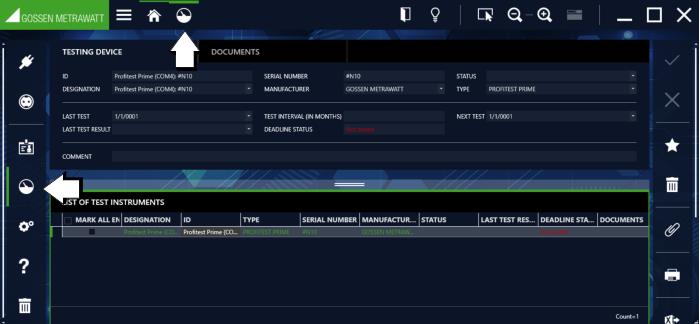

Test equipment management consists of two tabs:

Additionally, the list of registered test instruments is displayed in the lower part of the view (see „Test Instruments List“).









All master and calibration data can be entered to the test instrument tab. Mandatory fields include “ID number”, “Designation”, “Serial number” and “Type”.



Tools:















All calibration certificates can be entered to the documents tab.



Tools:













(Since this tab is a list, the functions of the list view apply and, in addition, the list icons in the toolbar are activated – see „Lists“.)



All registered test instruments are displayed in the test instruments list.

After selecting a test instrument from the list, its associated master data and documents are displayed.



Tools:













(Since this tab is a list, the functions of the list view apply and, in addition, the list icons in the toolbar are activated – see „Lists“.)
