Catalogs are available for certain data fields. Some of the catalogs are predefined at the factory and cannot be changed. These are catalogs which are essential for the Profitest test instrument in order to evaluate its measured values. Other catalogs are freely editable. These catalogs are used, for example, for auto-completion of field entries, but can also be transferred to the Profitest as an inventory tool (e.g. cable type).

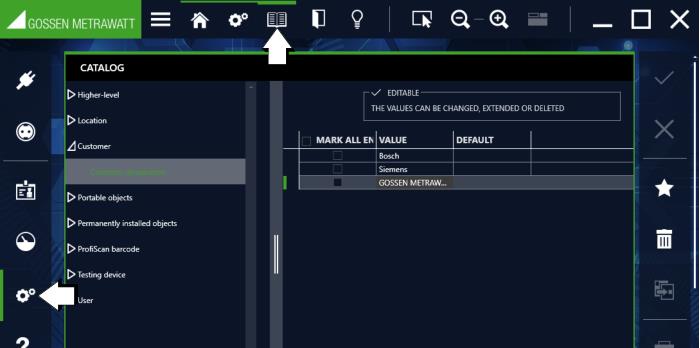

The catalog view consists of two fields. A hierarchical view of the entry fields is displayed as a tree structure in the left-hand field. After selecting the entry fields, the input window appears in the right-hand field. A note appears in the upper right area indicating whether or not the respective values can be changed. If this is possible, further entries can be made using the command.
The following types of catalog entries are available:
• Alphanumeric entry fields – any desired input Entry fields to which any desired number and character strings can be entered. Each completed entry is transferred to the respective catalog. These catalogs are used for auto-completion.
• Numeric entry fields with and without unit of measure – any desired input Entry fields to which numerical values within specified limits can be entered. In addition, selection can be made from a list of preset units of measure. Values are entered by selecting the pen icon . These catalogs are used for auto-completion.
• ProfiScan barcode entry fields – any desired input Ready-made barcodes (CODE 128 and QR code) are available for test instruments from the PROFITEST MASTER/PRIME series, which serve as input aids for the following functions. ProfiScan extends options for test documentation – a categorized comment can be saved to each electrical object in the tree structure by simply scanning the respective barcode. The following categories are available:
– Defects (inspection defects)
– Test (reason for test: new installation, periodic test)
– Inspection (visual inspection documentation)
– Test run (function test)
– Reporting (scope of testing)
IZYTRONIQ makes it possible to create your own barcodes which can be added to the end of the catalog list.
The corresponding texts can be assigned to a test object in the PROFITEST... test instrument by simply scanning the desired barcode.

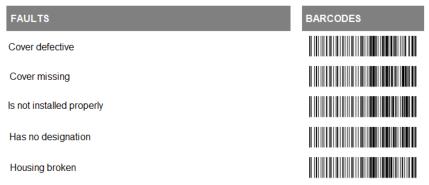

ProfiScan example (print preview / PDF)
“Profiscan”
Tools:
Save changes
Cancel editing
Add element
Remove element
Paste from clipboard
Print: Print and save the selected barcode list or all lists, if main menu item “Barcode” has been selected (see
„Printing“.
(Since this tab is a list, the functions of the list view apply and, in addition, the list icons in the toolbar are activated – see
„Lists“.)
command.
. These catalogs are used for auto-completion.
