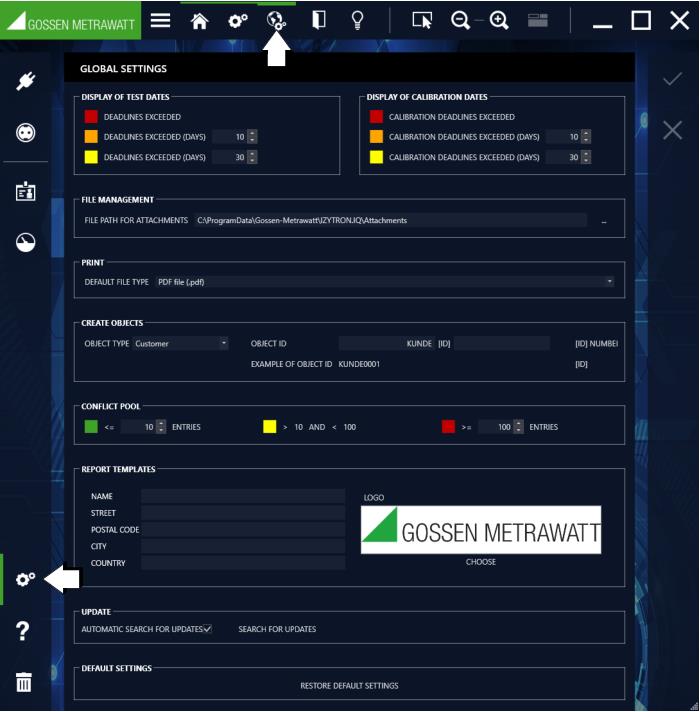

Settings which apply globally to all users can be found here.
Display of Test/Calibration Deadlines
Deadlines/colors for scheduled dates – default values:
– Red: deadline exceeded
– Orange: deadline exceeded in xx days
– Yellow: deadline exceeded in yy days
File Management
Defines the path for storing file attachments. By default it is the same as the path for the database.
Attention!
This path must be local on the device where the IZYTRONIQ is installed. It must NOT be a network path,OneDrive-Pfad, or similar.
As of ENTERPRISE, installation differs from BUSINESS (see „ENTERPRISE“).
Printing
As of BUSINESS Advanced: The default file format (.pdf, .doc or .docx) in which selected data will saved via the print menu (Save as) can be preselected here (see also „Printing“).
Entering Objects
How the IDs of the objects will be set up in the tree structure can be specified here. A separate rule can be created for each object type – selectable via pull-down menu. Object ID format and increment must be selected in order to specify formulation of the object name. For object ID, the name of the object type is first displayed as a prefix (beginning of the object name, field to the left of [ID]) or as a suffix (end of the object name, field to the right of [ID]). However, prefix or suffix can be selected as desired. The result of the preselection is displayed simultaneously as an example of an object ID. The number of digits in the ID number and the number of digits in the ID increment must also be specified.
Conflict Pool
Colors for the display in the conflict manager depending on the number of entries. Default setting:
– Green: up to 10 entries
– Yellow: more than 10 and up to 100 entries (limit values are set automatically)
– Red: equal to or more than 100 entries
Report Templates
The following entries and attachment are used for all test reports.
– Contractor: The address of the respective contractor is entered here including name, street, postal code, city and country (pull-down menu).
– Logo: The logo for all future test reports is incorporated with the help of the “SELECT” button (possible as of BUSINESS Advanced). After clicking “SELECT”, an explorer window appears with recommended image formats (*.jpg, *.jpeg, *.bmp), in which you can search for a user-defined logo file.
“Replacing Logo and Company Address”
Updating
– Check for updates automatically: selection can be made here as to whether or not IZYTRONIQ will search for updates when started.
– Check for updates: a manual search for updates can be started by clicking this button.
Restore Default Settings
All selected global settings are reset to their default values. An extra “system settings” authorization is required for reset.
